Khuliso Fittings, located in Cape Town, South Africa, stands out as a top manufacturer and supplier of high-quality 90° Short Radius Elbows, providing outstanding piping solutions to clients in Dubai, UAE. Known for their precision engineering, durability, and strict adherence to global quality standards, Khuliso Fittings guarantees that every product meets the demanding needs of today’s industries. These elbows are expertly crafted to facilitate efficient directional changes in pipelines, optimizing space while ensuring excellent flow performance. With a strong commitment to excellence and timely delivery, Khuliso Fittings proudly serves a variety of sectors, ensuring reliability and customer satisfaction.
Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Seamless Pipe 90° Short Radius Elbow Size: 1/2″~24″
ERW / Welded / Fabricated 90° Short Radius Elbow Size: 1/2″ (15 NB) to 48″ (1200NB)
Form: 90° Short Radius Elbow
The 90° Short Radius Elbow is made from premium-grade materials, including carbon steel, stainless steel, alloy steel, and other specialized alloys. These elbows boast impressive tensile strength, corrosion resistance, and heat tolerance. Mechanically, they are designed to handle high pressure, exhibit good hardness, and provide long-lasting performance even in tough industrial conditions. Their sturdy construction and smooth internal surface help minimize pressure loss, ensure leak-proof operation, and offer great adaptability for different piping systems and fluid types.
Stainless Steel 90° Short Radius Elbow : ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel 90° Short Radius Elbow : ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Alloy Steel 90° Short Radius Elbow : ASTM A234, ASME SA234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91
Duplex Steel 90° Short Radius Elbow : ASTM A815, ASME SA815 UNS No S31803, S32205
Super Duplex 90° Short Radius Elbow : ASTM A815, ASME SA815 UNS No S32750, S32950
Nickel Alloy 90° Short Radius Elbow : ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.
Low Temperature Carbon Steel 90° Short Radius Elbow : ASTM A420 WPL3, A420 WPL6
Khuliso Fittings is a leading supplier of 90 Deg Short Orangeius Elbow in Cape Town, South Africa. We offer an extensive range of 90 Deg Short Orangeius Elbow, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose 90 Deg Short Orangeius Elbow from Khuliso Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
90° Short Radius Elbows provide several key advantages, including their ability to fit into compact spaces where standard long radius elbows may not be suitable. Their design allows for quick directional changes in piping systems, making them ideal for installations with limited room. Despite their tighter bend, these elbows offer reliable flow control and minimal pressure loss in low-velocity systems. Made from durable materials like stainless steel and alloys, they offer corrosion resistance and long-lasting performance. Widely used in industries such as HVAC, chemical processing, and plumbing, they ensure efficient and effective flow management.
Yes, custom sizes for 90 Deg Short Orangeius Elbow are available at Khuliso Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@khulisofittings.co.za.
| NPS | O.D. D | Center-to-End A |
| 1 | 33.4 | 25 |
| 1 ¼ | 42.2 | 32 |
| 1½ | 48.3 | 38 |
| 2 | 60.3 | 51 |
| 2 ½ | 73 | 64 |
| 3 | 88.9 | 76 |
| 3 ½ | 101.6 | 89 |
| 4 | 114.3 | 102 |
| 5 | 141.3 | 127 |
| 6 | 168.3 | 152 |
| 8 | 219.1 | 203 |
| 10 | 273 | 254 |
| 12 | 323.8 | 305 |
| 14 | 355.6 | 356 |
| 16 | 406.4 | 406 |
| 18 | 457 | 457 |
| 20 | 508 | 508 |
| 22 | 559 | 559 |
| 24 | 610 | 610 |

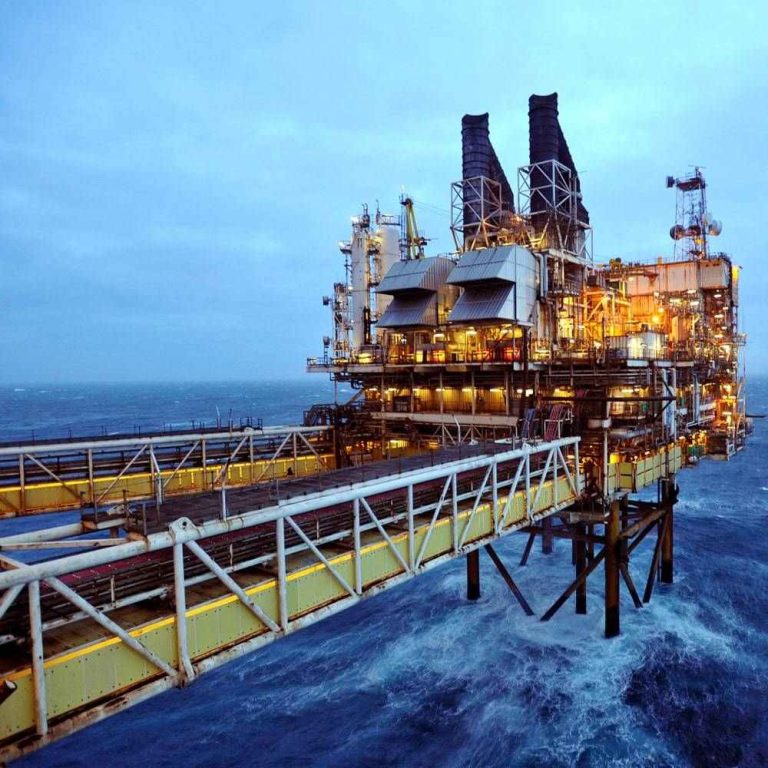

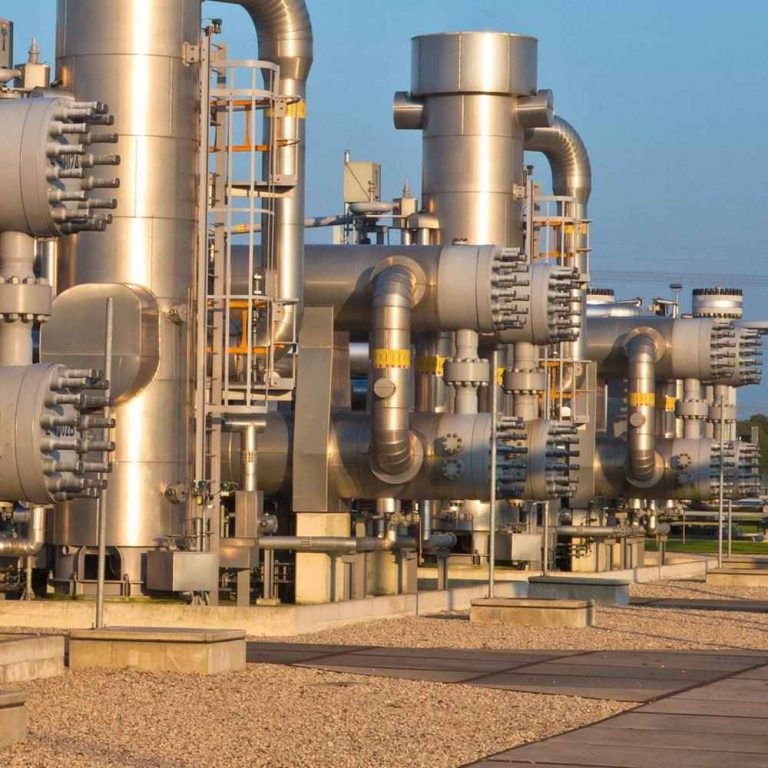

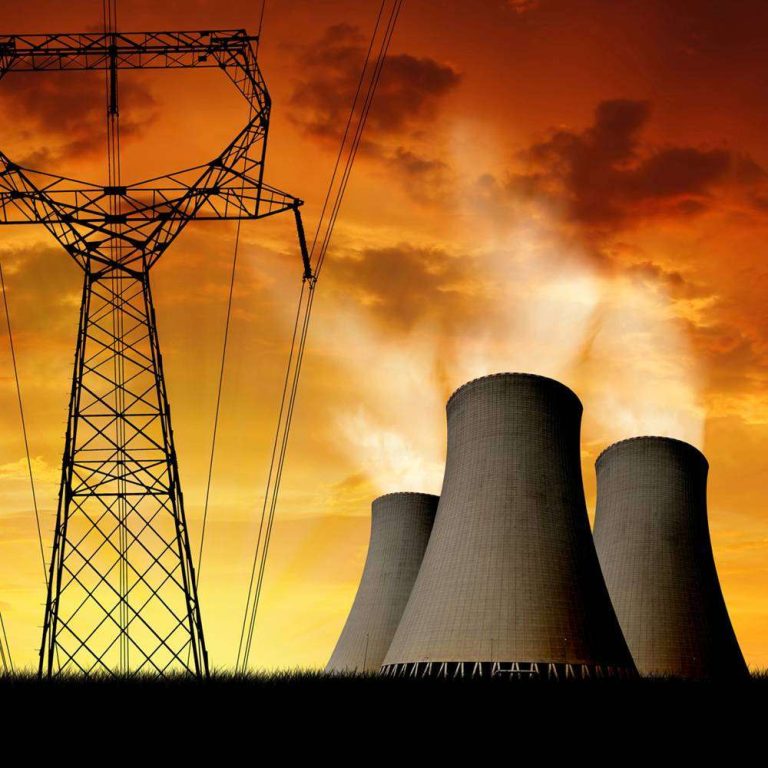

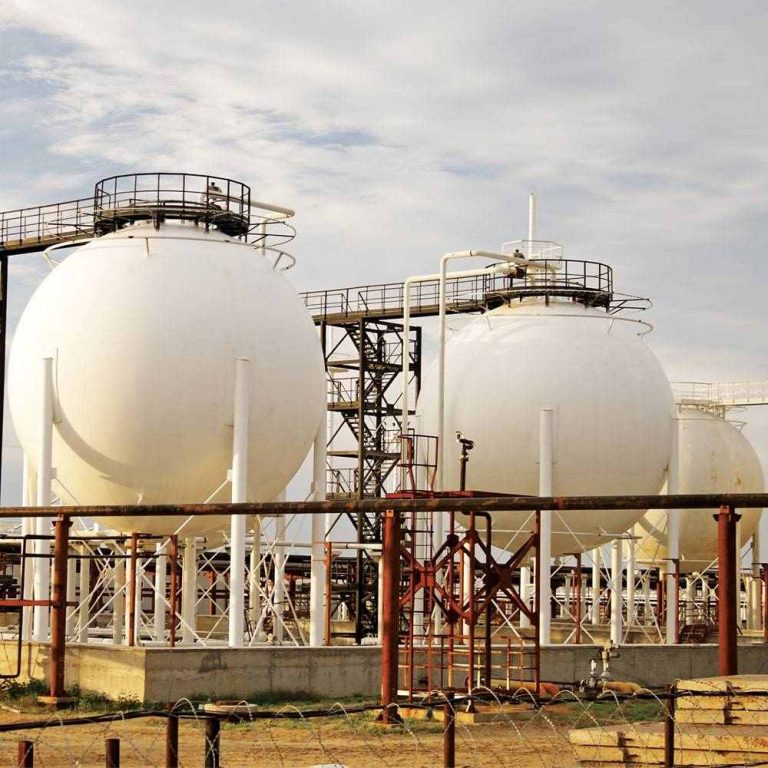

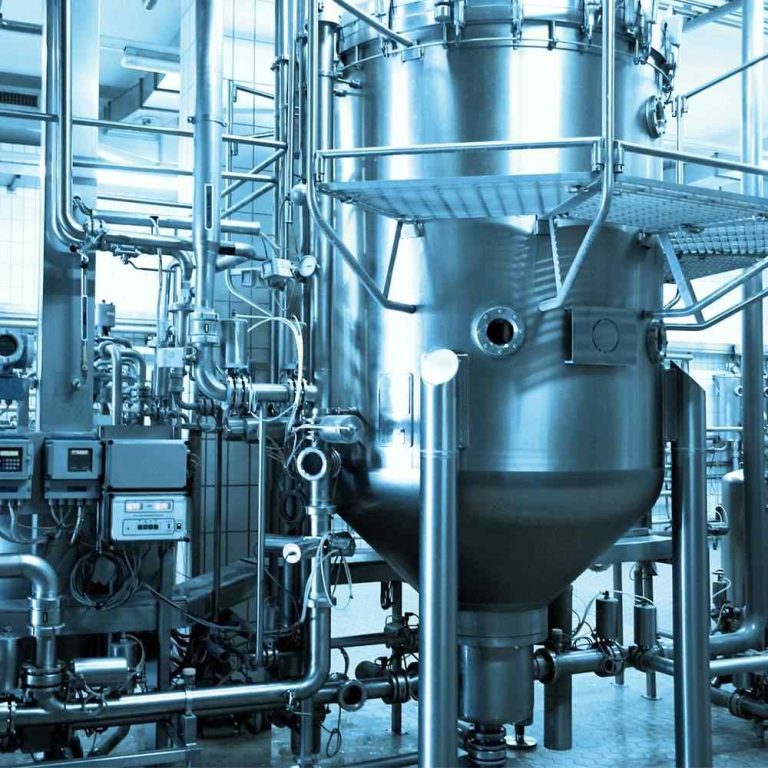

You’ll find 90° Short Radius Elbows widely used in industries where space is tight and efficient flow management is essential. They’re commonly found in oil and gas refineries, chemical plants, power generation facilities, petrochemical processing, and marine systems. These elbows allow for smooth directional changes in pipelines that transport liquids, gases, or steam. Their compact design makes them perfect for tight installations, while their strength and corrosion resistance guarantee durability and reliability in high-pressure and high-temperature operations across various industrial settings.
