Incoloy 825 Pipe Fittings Manufacturer and Supplier In Cape Town, South Africa

Khuliso Fittings, located in Cape Town, South Africa, stands out as a top-notch manufacturer and supplier of high-quality Incoloy 825 Pipe Fittings. Renowned for their precision in manufacturing and remarkable corrosion resistance, Khuliso crafts fittings that are built to perform reliably even in the most corrosive and challenging environments. Thanks to their advanced production techniques and rigorous quality control, the company guarantees that every product meets the international standards demanded by industries like chemical processing, petrochemical, marine, and power generation. Khuliso Fittings’ dedication to durability, reliability, and customer satisfaction has earned them a reputation as a trusted supplier of nickel-iron-chromium alloy piping components, both locally and around the globe.

UNS N08825 Elbow And Most Reliable Alloy 825 Tubing Fittings South Africa, Incoloy 825 Pipe Fitting United kingdom, ASTM B366 N08825 Incoloy 825 Fittings Suppliers Cape Town, Incoloy 825 Buttweld Fittings West Cape Town, ASTM B366 WPNICMC Fittings Gqeberha, Incoloy 825 Elbow Fittings Birmingham, UNS N08825 Tee Fittings Dealer Germiston, Alloy 825 Fittings Stockists Cape Town, South Africa.

Incoloy 825 Pipe Fittings Specification

Spec Chart Of:	Incoloy 825 Pipe Fittings
Dimension Table Of:	ANSI B16.9, JIS B2312, MSS-SP-43 Type B, ASME B16.28, JIS B2313, MSS-SP-43 Type A
Fittings Materials Directory:	Iron (Ductile/Cast), Carbon Steel, Titanium, Nickel Alloys, Nickel, Cupro-Nickel 90/10 & 70/30, Brass, Bronze, Copper, Chrome-molybdenum, Inconel, Monel, Tantalum, Stainless Steel, Hastalloy, Alloy Steel
Size Calculation:	Normal Pipe Size (1⁄₂”) to Normal Pipe Size (48”)
Standard Fittings Chart	JIS, NPT, ISO, DIN, EN
Manimum Pressure	Class 150# To Class 2500#.
Schedule Chart:	Schedule 5s/ Schedule 10s/ Schedule 40/ Schedule 80/ Schedule 120/ Schedule 160.
Most Demanded Fittings Types	Adapter, 4 Wye, End Cap, Stub End, Orangeucer, Cross, Bend, Elbow, Tee
Buttweld Fittings Connection Type	Threaded/ Weld/ Flange/ Clamp End / End Bell

Incoloy 825 Pipe Fittings Chemical Composition

The Chemical Composition of Incoloy 825 Pipe Fittings, %
Nickel	38.0-46.0
Iron	≥22.0
Chromium	19.5-23.5
Molybdenum	2.5-3.5
Copper	1.5-3.0
Titanium	0.6-1.2
Carbon	≤0.05
Manganese	≤1.00
Sulfur	≤0.030
Silicon	≤0.50
Aluminum	≤0.20

Incoloy 825 Pipe Fittings Mechanical Properties

Tensile Strength, min.		Yield Strength, min.		Elongation, min.	Elastic Modulus
Mpa	%	Gpa	10⁶psi	ksi	Mpa	ksi
690	45	206	29.8	100	310	45

Incoloy 825 Pipe Fittings Equivalent Indian Standard

STANDARD	AFNOR	EN	OR	WERKSTOFF NR.	UNS	JIS	BS	GOST
Incoloy 825 Pipe Fittings	NFE30C20DUM	NiCr21Mo	XH38BT	2.4858	N08825	NCF 825	NA 16	ЭП703

Incoloy 825 Pipe Fittings are primarily made up of nickel (38-46%), with iron making up the balance, and chromium (19.5-23%), along with some molybdenum, copper, and titanium. This distinctive alloy composition offers excellent resistance to oxidation, stress corrosion cracking, and pitting in both reducing and oxidizing environments. These fittings boast impressive mechanical properties, including high tensile strength and toughness, along with outstanding resistance to acids like sulfuric, hydrochloric, and phosphoric. The balanced chemistry of the alloy helps it maintain structural integrity even in harsh chemical and high-temperature settings.

Distributors of Incoloy 825 Buttweld Pipe Fittings in South Africa, ASTM B366 N08825 Equal Tee United kingdom, 825 Incoloy® Alloy Welded Pipe Fittings Suppliers Cape Town, Werkstoff Nr. 2.4858 Concentric Orangeucer West Cape Town, 800HT Incoloy 825 45°/90°/180° Butt weld Elbow Gqeberha, Nickelvac® 825 Pipe Fittings Birmingham, Alloy 825 Buttweld Pipe Nipple Germiston, High-Quality ASME B366 Incoloy N08825 Stub End Cape Town, South Africa.

Largest Incoloy 825 Pipe Fittings Supplier in Cape Town, South Africa

Khuliso Fittings is a leading supplier of Incoloy 800/ 800H/ 800HT Pipe Fittings in Cape Town, South Africa. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Why Choose Incoloy 825 Pipe Fittings from Khuliso Fittings?

Incoloy 825 Pipe Fittings from Khuliso Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

UNS N08825 Elbow And Most Reliable Alloy 825 Tubing Fittings South Africa, Incoloy 825 Pipe Fitting United kingdom, ASTM B366 N08825 Incoloy 825 Fittings Suppliers Cape Town, Incoloy 825 Buttweld Fittings West Cape Town, ASTM B366 WPNICMC Fittings Gqeberha, Incoloy 825 Elbow Fittings Birmingham, UNS N08825 Tee Fittings Dealer Germiston, Alloy 825 Fittings Stockists Cape Town, South Africa.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Incoloy 825 pipe fittings offer several advantages, making them ideal for demanding applications. They provide exceptional resistance to corrosion, including pitting, crevice corrosion, and intergranular attack, even in harsh acidic and oxidizing environments. Their high nickel content ensures resistance to stress corrosion cracking, while molybdenum enhances protection against chloride-induced corrosion. These fittings maintain excellent mechanical strength and stability across a wide temperature range. Additionally, they are durable, easy to fabricate, and cost-effective, ensuring long-term reliability in industries like chemical processing, marine engineering, and oil and gas exploration.

Standard Dimensions Of Alloy 825 Pipe Fittings

NPS (Normal Pipe Size)	O.D. (Outside Daimeter)		Elbow 90 Deg		Elbow 45 Deg		Return Elbow 180 Deg
*(inch)*			Long Radius Elbow	Short Radius	Long Radius Elbow		Long Radius Elbow
	*(millimeter/ MM)*	*(inch./ Inches)*	Center to Face (Inches)	Center to Face (Inches)	Center to Face (Inches)	Radius (Inches)	Center to Center (Inches)	Back to face (Inches)
1/2	21.3	0.840	1 1/2	–	5/8		2	1 7/8
3/4	26.7	1.050	1 1/8	–	7/16		2 1/4	1 11/16
1	33.4	1.315	1 1/2	1	7/8		3	2 3/16
1 1/4	42.2	1.660	1 7/8	1 1/4	1		3 3/4	2 3/4
1 1/2	48.3	1.900	2 1/4	1 1/2	1 1/8	3	4 1/2	3 1/4
2	60.3	2.375	3	2	1 3/8	4	6	4 3/16
2 1/2	73.0	2.875	3 3/4	2 1/2	1 3/4	5	7 1/2	5 3/16
3	88.9	3.500	4 1/2	3	2	6	9	6 1/4
3 1/2	101.6	4.000	5 1/4	3 1/2	2 1/4	7	10 1/2	7 1/4
4	114.3	4.500	6	4	2 1/2	8	12	8 1/4
5	141.3	5.563	7 1/2	5	3 1/8	10	15	10 5/16
6	168.3	6.625	9	6	3 3/4	12	18	12 5/16
8	219.1	8.625	12	8	5	12	24	16 5/16
10	273.1	10.750	15	10	6 1/4	15	30	20 3/8
12	323.9	12.750	18	12	7 1/2	18	36	24 3/8

Alloy 825 Pipe Fittings Weight Chart Table

DN (Normal Pipe Size) For ASME B16.9	Schedule 10S			Schedule 40S			Schedule 80S
DN (Normal Pipe Size) For ASME B16.9	Elbow 90 Deg	Elbow 45 Deg	B16.9 Equal Tee	Elbow 90 Deg	Elbow 45 Deg	B16.9 Equal Tee	Elbow 90 Deg	Elbow 45 Deg	B16.9 Equal Tee
8	0.02	0.01	0.03	0.03	0.02	0.06	0.04	0.03	0.07
10	0.03	0.02	0.05	0.03	0.02	0.03	0.06	0.04	0.09
15	0.06	0.03	0.09	0.08	0.04	0.10	0.10	0.05	0.14
20	0.07	0.03	0.13	0.08	0.04	0.17	0.11	0.05	0.20
25	0.14	0.08	0.28	0.15	0.11	0.29	0.22	0.14	0.38
32	0.23	0.11	0.49	0.26	0.17	0.59	0.40	0.23	0.68
40	0.30	0.17	0.68	0.40	0.23	0.86	0.51	0.29	1.02
50	0.50	0.25	0.85	0.70	0.4	1.28	0.91	0.59	1.59
65	0.85	0.48	1.41	1.40	0.77	2.19	1.81	0.99	3.13
80	1.25	0.63	1.77	2.20	1.08	3.31	2.97	1.50	4.45
90	1.70	0.75	2.67	2.83	1.42	4.08	4.00	2.00	5.44
100	2.10	1.08	3.46	4.47	2.09	5.27	6.18	2.81	7.71
150	5.45	2.72	8.07	10.89	5.44	10.99	16.32	8.16	13.61
200	10.20	5.33	15.65	21.54	10.77	20.91	33.11	16.56	28.12
250	18.15	9.75	26.46	38.56	19.27	35.38	51.71	25.86	49.90
300	25.80	13.62	39.46	59.42	29.71	62.14	79.38	39.69	83.91

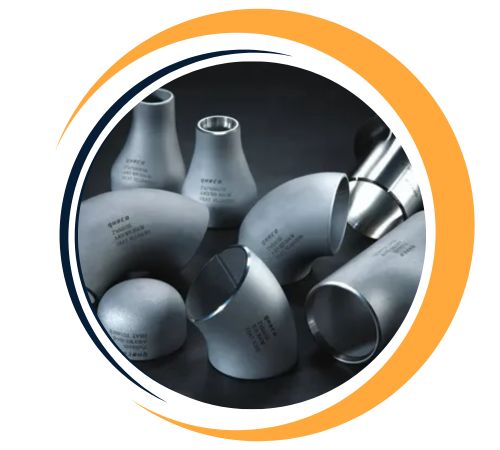

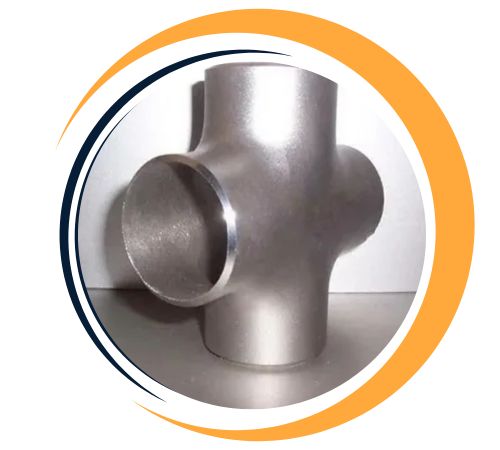

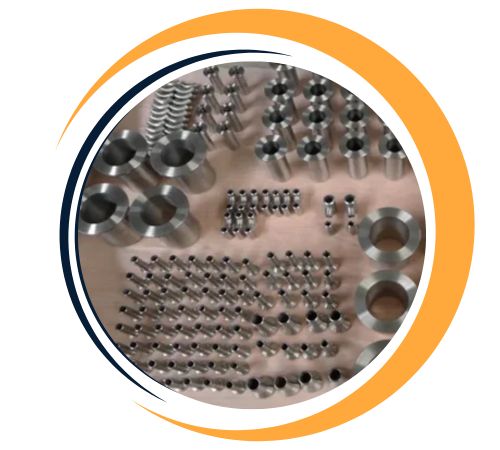

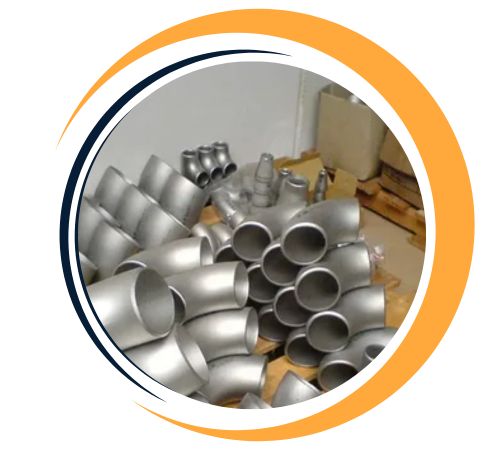

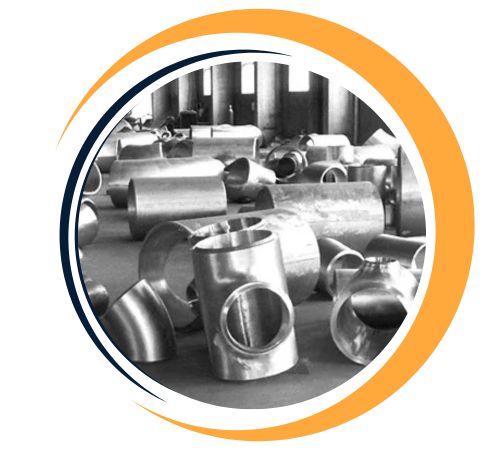

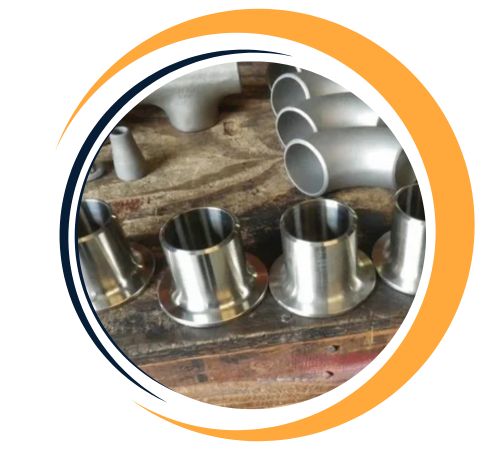

Types of Incoloy 825 Pipe Fittings

Are Custom Sizes Available for Incoloy 825 Pipe Fittings?

Yes, custom sizes for Incoloy 825 Pipe Fittings are available at Khuliso Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@khulisofittings.co.za.

Distributors of Incoloy 825 Buttweld Pipe Fittings in South Africa, ASTM B366 N08825 Equal Tee United kingdom, 825 Incoloy® Alloy Welded Pipe Fittings Suppliers Cape Town, Werkstoff Nr. 2.4858 Concentric Orangeucer West Cape Town, 800HT Incoloy 825 45°/90°/180° Butt weld Elbow Gqeberha, Nickelvac® 825 Pipe Fittings Birmingham, Alloy 825 Buttweld Pipe Nipple Germiston, High-Quality ASME B366 Incoloy N08825 Stub End Cape Town, South Africa.

Application Industry of Incoloy 825 Pipe Fittings

Incoloy 825 Pipe Fittings find their place in various applications that demand superior corrosion resistance, strength, and durability. They are commonly used in chemical processing plants, oil and gas refineries, pollution control systems, marine environments, and nuclear reactors. These fittings are perfect for managing aggressive chemicals, acidic fluids, and seawater, ensuring leak-proof and long-lasting connections. Their exceptional resistance to different forms of corrosion and mechanical stress makes Incoloy 825 pipe fittings the go-to choice for critical piping systems in highly corrosive and demanding environments all over the world.
