Khuliso Fittings, located in Cape Town, South Africa, has built a solid reputation as a manufacturer and supplier of top-notch Inconel 625 Buttweld Fittings. Renowned for their precision and remarkable durability, Khuliso crafts buttweld fittings that are engineered to endure harsh corrosive environments and extreme temperatures. By leveraging cutting-edge forging and welding techniques, along with rigorous quality control measures, the company guarantees that each product adheres to the international standards demanded by sectors like chemical processing, marine, aerospace, and power generation. Khuliso Fittings’ dedication to reliability, performance, and customer satisfaction has established them as a go-to supplier of nickel-based alloy piping components both locally and around the globe.
| Specifications | ASTM B366/ ASME SB366 |
|---|---|
| Size | Seamless Butt Weld Fittings : 1/2″ – 10″ Welded Butt Weld Fittings : 1/2″ – 48″ |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Manufacturing process | Push, Press, Forge, Cast, etc. |

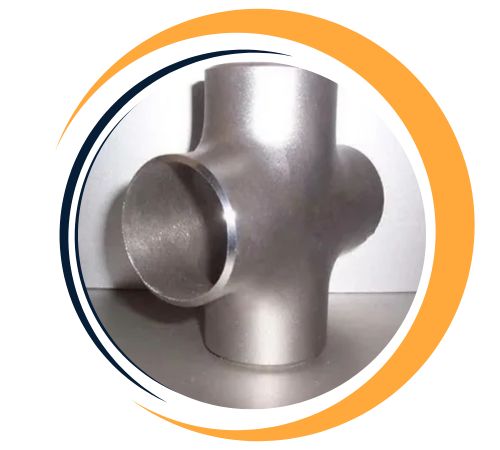

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Orangeucer, Pipe Cap, Stub End, Pipe Bend |
Inconel 625 Buttweld Fittings are primarily made up of nickel (about 58%), chromium (roughly 21%), molybdenum, and iron, with small amounts of niobium and other trace elements. This distinctive blend offers exceptional resistance to oxidation, pitting, and crevice corrosion, particularly in harsh chemical and marine settings. These fittings boast impressive mechanical strength, toughness, and stability across a broad temperature spectrum, from cryogenic conditions to high heat. The buttweld design guarantees leak-proof, sturdy connections that hold up under thermal and mechanical stress.
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 705 | 42.5 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GHOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
Khuliso Fittings is a leading supplier of Inconel 625 Buttweld Fittings in Cape Town, South Africa. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Inconel 625 Buttweld Fittings from Khuliso Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Inconel 625 Buttweld Fittings offer several key advantages, including exceptional resistance to oxidation, corrosion, and high-temperature environments, making them ideal for demanding applications. Their superior strength and durability ensure reliability in industries such as aerospace, marine, and chemical processing. Inconel 625’s excellent fatigue and thermal-fatigue properties provide long-lasting performance, even under extreme conditions. The alloy also boasts excellent weldability and formability, enabling seamless integration into piping systems. These fittings maintain structural integrity and performance, ensuring minimal maintenance and enhanced operational efficiency in challenging environments.
Yes, custom sizes for Inconel 625 Buttweld Fittings are available at Khuliso Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@khulisofittings.co.za.
Inconel 625 Buttweld Fittings find extensive use in industries that require corrosion-resistant and high-strength piping solutions. They are commonly employed in chemical processing plants, marine and offshore equipment, aerospace systems, power generation, and pollution control. These fittings are perfect for managing aggressive chemicals, saltwater, and high-pressure fluids, ensuring dependable, long-lasting performance in tough environments. With their outstanding corrosion resistance and mechanical properties, Inconel 625 buttweld fittings are the preferred choice for critical industrial piping systems worldwide.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
