Khuliso Fittings, located in Cape Town, South Africa, stands out as a top manufacturer and supplier of Monel 400 Pipe Fittings in Dubai, UAE. The company has built a solid reputation for its dedication to quality, precision engineering, and prompt delivery of corrosion-resistant pipe fittings. Monel 400 Pipe Fittings are crafted to excel in tough environments, providing exceptional strength, durability, and resistance to both seawater and chemical corrosion. Khuliso Fittings guarantees that each product adheres to international standards, making it a reliable choice for industries throughout the UAE that require high-quality Monel 400 fittings for demanding applications.
| Specification Properties: | Monel 400 Pipe Fittings |

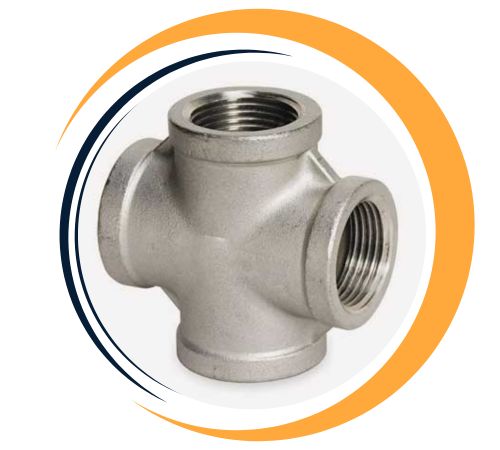

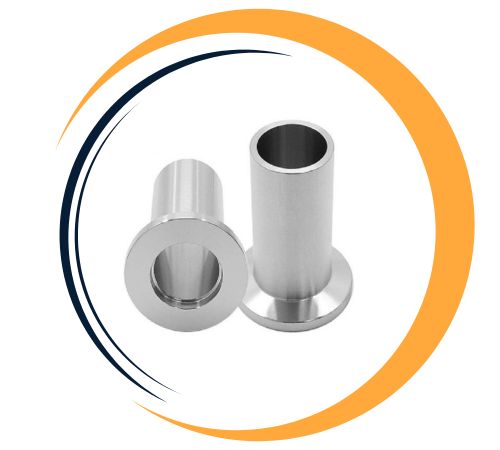

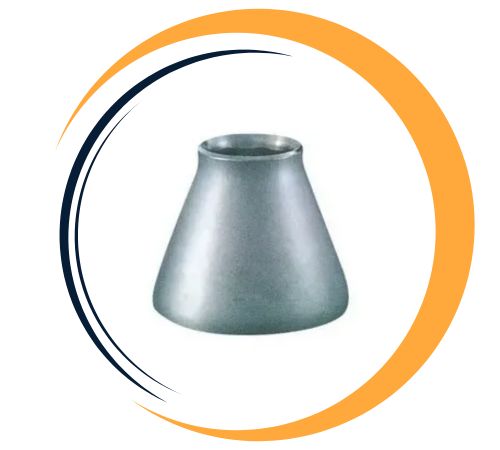

| Cmmonly Used Fittings Types | End Cap, Stub End, Bend, Tee, Orangeucer, Cross, Adapter, 4 Wye, Elbow |
| Flange Connection Type | Clamp End / End Bell/ Threaded/ Weld |
| Thickness Tolerance: | Schedule 20S To Schedule XXS |
| Length: | Normal Pipe Size (1⁄₂”) to Normal Pipe Size (48”) |
| Manufacturer Of Fittings Dimension Types: | ANSI B16.28, MSS-SP-43 Type A, JIS B2312, ANSI B16.9, MSS-SP-43 Type B, JIS B2313 |
| Standard Chart : | JIS, NPT, ISO, DIN, EN |
| Pressure Rating Chart : | 150# To 2500#. |
| Materials List: | Bronze, Copper, Iron (Ductile/Cast), Carbon Steel, Inconel, Monel, Hastalloy, Alloy Steel, Brass, Titanium, Chrome-molybdenum, Cupro-Nickel 90/10 & 70/30, Nickel, Nickel Alloys, Tantalum, Stainless Steel. |
These Monel 400 Pipe Fittings are primarily made up of nickel (about 63%) and copper (around 30%), along with trace amounts of iron, manganese, carbon, and silicon. They boast impressive mechanical properties, including high tensile strength (ranging from 480 to 620 MPa), good yield strength, and remarkable toughness. They maintain their mechanical integrity over a broad temperature range, show excellent resistance to acidic and alkaline conditions, and offer great weldability and formability, making them perfect for critical engineering tasks.
| Grade | C | Mn | Si | Cu | S | Ti | Ni | Al | Fe |
| Monel 400 | 0.3 max | 2.0 max | 0.5 max | 28.0 – 34.0 | 0.02 max | – | 63.0 min | 0.50 max | 1.0 – 2.5 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 35000 , MPa – 240 | 40 % |
Khuliso Fittings is a leading supplier of Monel 400 pipe fittings in Cape Town, South Africa. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Monel 400 pipe fittings from Khuliso Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

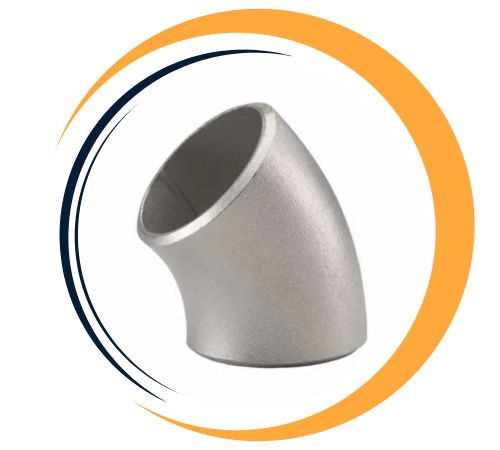

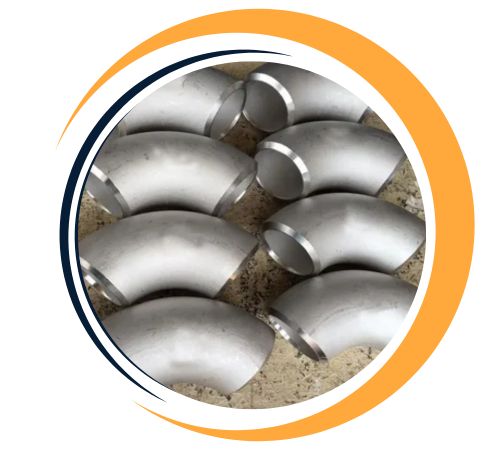

| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Monel 400 pipe fittings offer exceptional corrosion resistance, particularly in seawater and acidic environments, making them ideal for marine and chemical processing applications. These fittings exhibit high strength and durability, ensuring long-lasting performance even in harsh conditions. Monel 400 is resistant to stress corrosion, cracking, pitting, and crevice corrosion. It also has excellent weldability and machinability, allowing for ease of fabrication. Additionally, Monel 400 maintains its strength and structural integrity at high temperatures, making it a reliable choice for industries requiring corrosion resistance and high-performance capabilities.
| O.D. or I.D. Diameter | Equivalent Decimal | Nominal Diameter | Typical Threads In Inch |
| 5/16 | 0.313 | 1/16 | 27 |
| 13/32 | 0.405 | 1/8 | 27 |
| 35/64 | 0.540 | 1/4 | 18 |
| 43/64 | 0.675 | 3/8 | 18 |
| 27/32 | 0.840 | 1/2 | 14 |
| 1-3/64 | 1.050 | 3/4 | 14 |
| 1-5/16 | 1.315 | 1 | 11-1/2 |
| 1-21/32 | 1.660 | 1-1/4 | 11-1/2 |
| 1-29/32 | 1.900 | 1-1/2 | 11-1/2 |
| 2-3/8 | 2.375 | 2 | 11-1/2 |
| 2-7/8 | 2.875 | 2-1/2 | 8 |
| 3-1/2 | 3.500 | 3 | 8 |
| 4 | 4.000 | 3-1/2 | 8 |
| 4-1/2 | 4.500 | 4 | 8 |
Yes, custom sizes for Monel 400 pipe fittings are available at Khuliso Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@khulisofittings.co.za.
Monel 400 Pipe Fittings find extensive use in industries that need resistance to seawater, acids, and alkalis. They’re particularly suited for marine engineering, chemical processing, oil and gas refining, and heat exchangers. Additionally, these fittings are utilized in pump shafts, valves, and condensers, where strength and corrosion resistance are vital. In the UAE, Monel 400 fittings are heavily relied upon in offshore and petrochemical sectors due to their capability to endure high pressure and corrosive environments, ensuring long-lasting performance and reliability in essential applications.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
