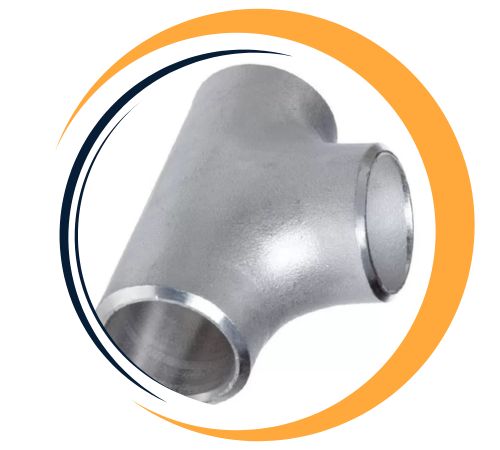

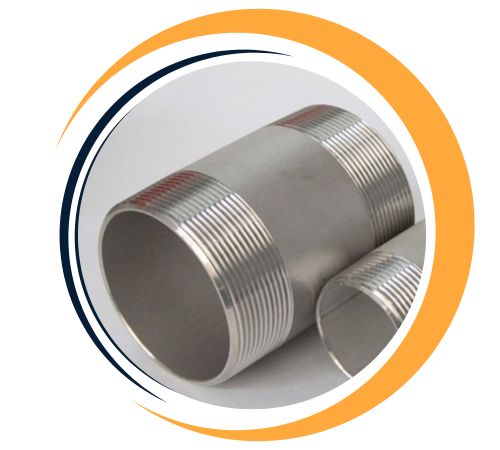

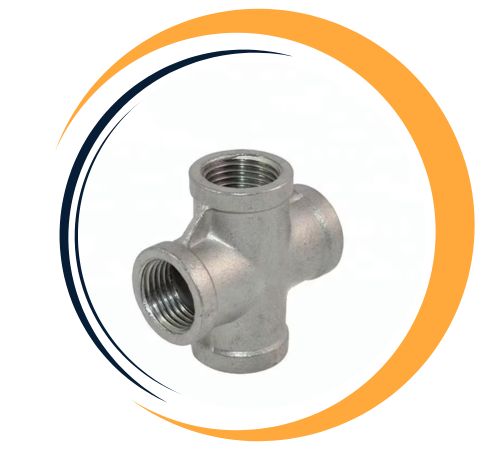

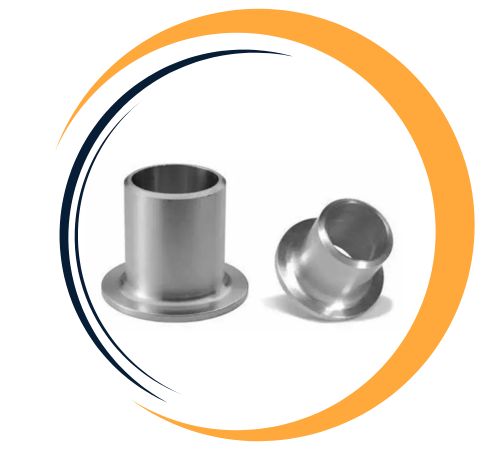

Khuliso Fittings is a reputable manufacturer and supplier located in Cape Town, South Africa, specializing in high-quality Stainless Steel 309H Pipe Fittings. These fittings are expertly crafted to endure high-temperature conditions while offering outstanding resistance to oxidation and corrosion. Stainless Steel 309H, a high-carbon variant of 309, provides enhanced strength and creep resistance at elevated temperatures, making it perfect for demanding industrial applications. Khuliso Fittings is committed to ensuring that all products adhere to international quality standards, catering to industries like petrochemical, power generation, furnace manufacturing, and chemical processing with robust and dependable piping solutions.
| Size Range | (Seamless): 1/2″ NB – 24″ NB(ERW): 1/2″ NB – 24″ NB(EFW): 6″ NB – 100″ NB |
| Wall thikness | Schedule 5S – Schedule XXS (heavier on request) |
| Form | Seamless / ERW / Welded In Round & Square |
| Grade | ASTM A312 Grade Tp309H |
Stainless Steel 309H Pipe Fittings contain 22-24% Chromium, 12-15% Nickel, 0.04-0.1% Carbon, up to 2% Manganese, 1% Silicon, 0.045% Phosphorus, 0.03% Sulfur, and trace elements. The higher carbon content enhances high-temperature strength and structural stability. 309H offers a tensile strength of 620 MPa, yield strength of 310 MPa, elongation of 40%, and a Brinell hardness of approximately 225 HB. These properties provide exceptional heat and creep resistance, ensuring durability and toughness in demanding applications like furnaces, boilers, and chemical processing equipment
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Fe |
Ni |
|
|
309H |
0.04-0.10 |
2 |
0.75 |
0.045 |
0.03 |
22-24 |
58-63 |
12-15 |
|
Grade | Tensile Str (MPa) min | Yield Str 0.2% Proof (MPa) min | Elong (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
309H
| 515 | 205 | 40 | 95 | 217 |
The composition of Stainless Steel 309H Pipe Fittings includes about 23% chromium, 13% nickel, and a carbon content ranging from 0.12% to 0.15%, along with trace amounts of manganese and silicon. This blend offers remarkable mechanical strength, oxidation resistance, and stability at high temperatures, reaching up to 1035°C. The fittings boast a tensile strength of approximately 520 MPa, a yield strength of 205 MPa, and an elongation of 40%. They also provide excellent weldability, toughness, and resistance to scaling, making them well-suited for continuous high-temperature service.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 309H Pipe Fittings from Khuliso Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | WERKSTOFF NR. | UNS |
| SS 309H | 1.4833 | S30909 |
Stainless Steel 309H Pipe Fittings offer enhanced strength and stability due to their higher carbon content, making them ideal for high-temperature applications. They provide excellent resistance to oxidation and corrosion, ensuring long-term durability in harsh environments. These fittings perform well under thermal cycling conditions and maintain structural integrity in temperatures exceeding 1000°C. Their superior creep resistance ensures reliability in pressure and stress-bearing applications. Easy to fabricate and weld, Stainless Steel 309H Pipe Fittings are suitable for industries like petrochemical, power generation, and chemical processing, delivering exceptional performance and longevity.

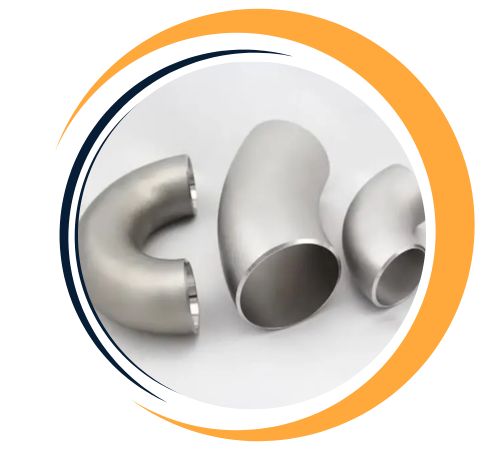

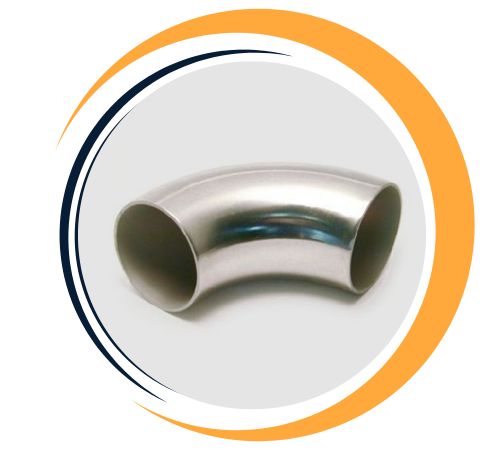

| Nominal PipeSize | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | – | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | 7/16 | 2 1/4 | 1 11/16 | ||
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Yes, custom sizes are available for Stainless Steel 309H Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@khulisofittings.co.za.
| NPS (inch) | Pipe Sch. | Wall Thk. (in) | OD (inch) | Temperature | ||||
|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | ||||
| Allowable Stress (Pressure Rating) | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 0.133 | 1.315 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 0.179 | 1.315 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 0.250 | 1.315 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 0.145 | 1.900 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 0.200 | 1.900 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 0.281 | 1.900 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 0.154 | 2.375 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 0.218 | 2.375 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 0.344 | 2.375 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 0.216 | 3.500 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 0.300 | 3.500 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 0.438 | 3.500 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 0.237 | 4.500 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 0.337 | 4.500 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 0.531 | 4.500 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 0.258 | 5.563 | 965 | 965 | 965 | 896 | 832 |
| 80 | 0.375 | 5.563 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 0.625 | 5.563 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 0.280 | 6.625 | 877 | 877 | 877 | 814 | 756 |
| 80 | 0.432 | 6.625 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 0.719 | 6.625 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 0.322 | 8.625 | 771 | 771 | 771 | 716 | 665 |
| 80 | 0.500 | 8.625 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 0.906 | 8.625 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 0.365 | 10.750 | 699 | 699 | 699 | 649 | 603 |
| 80 | 0.594 | 10.750 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 1.125 | 10.750 | 2289 | 2289 | 2289 | 2124 | 1974 | |
Stainless Steel 309H Pipe Fittings find extensive use in applications that demand high-temperature performance and corrosion resistance. Typical applications include furnace components, heat exchangers, boiler parts, superheaters, and chimneys. They are also utilized in petrochemical plants, power generation facilities, and chemical processing equipment, where exposure to thermal cycling and oxidizing environments is common. The combination of high-temperature strength, durability, and corrosion resistance makes these fittings an ideal choice for critical piping systems in industrial settings.
