Khuliso Fittings is a leading manufacturer and dealer based in Cape Town, South Africa, specializing in high quality lattice fittings. With a strong reputation for accuracy and reliability, Khuliso offers a wide range of products, including stainless steel 316/316L forged fittings. These fittings are known for their excellent corrosion resistance, durability and excellent performance in harsh environments. Khuliso Fittings is committed to providing exceptional products that meet the needs of the oil, oil and gas and construction industries.
| Specification | ASTM A182 / ASME SA182 |
| Dimension Standard | ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799 |
| Size | 1/8″ NB to 4″ NB |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Pressure-Temperature Class | Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS. |
Khuliso Fittings stands out as a trusted manufacturer and supplier of Stainless Steel 316/316L Forged Fittings right in the heart of Cape Town, South Africa. Renowned for their corrosion-resistant and high-strength fittings, Khuliso Fittings caters to a variety of industries, including petrochemical, pharmaceutical, marine, food processing, and water treatment. The Stainless Steel 316 and 316L grades are austenitic stainless steels enriched with molybdenum, which gives them exceptional resistance to chloride corrosion and acidic environments, far surpassing the standard 304 grades. With a commitment to precision and rigorous quality control, Khuliso Fittings ensures that their forged fittings meet global standards, delivering reliable performance even in high-pressure and corrosive settings.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
The Stainless Steel 316/316L Forged Fittings from Khuliso Fittings are crafted from a blend of 16–18% chromium, 10–14% nickel, and 2–3% molybdenum. This molybdenum content significantly boosts resistance to pitting and crevice corrosion, making these fittings ideal for marine and chemical applications. The 316L variant, with its lower carbon content, enhances weldability and minimizes the risk of carbide precipitation. These fittings boast a tensile strength of around 515 MPa and a yield strength of approximately 205 MPa, ensuring excellent ductility and toughness, even in freezing temperatures.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Choose Stainless Steel 316/316L Forged Fittings from Khuliso Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.

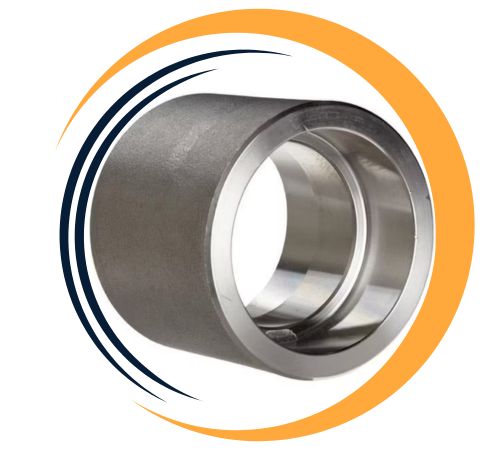

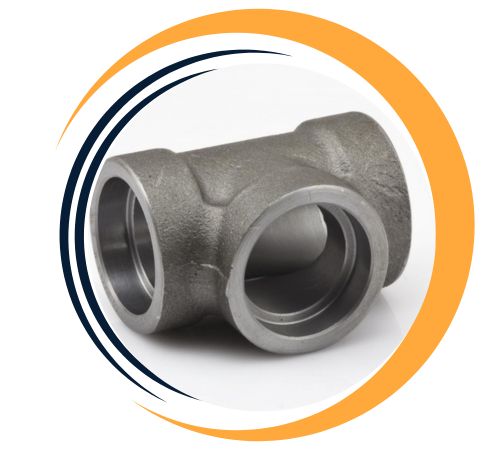

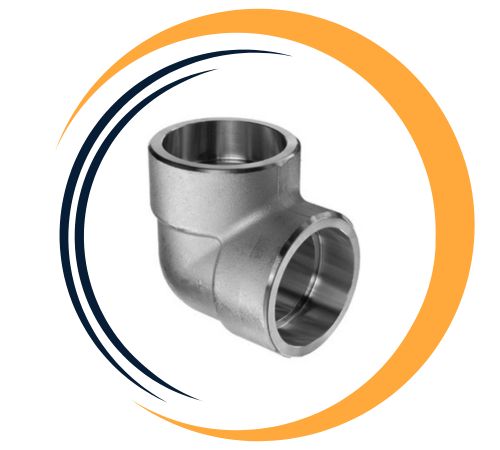

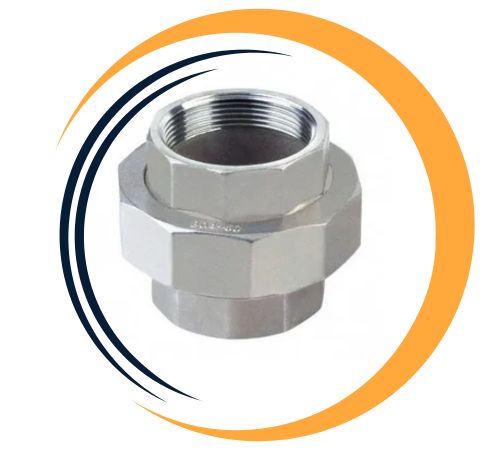

Perfect for challenging environments, Stainless Steel 316/316L Forged Fittings are commonly found in offshore platforms, chemical transport systems, water filtration plants, and hygienic processing systems. Khuliso Fittings offers a comprehensive range of forged components, including elbows, tees, couplings, unions, and plugs, all engineered for secure, leak-proof connections. With a strong emphasis on durability, corrosion resistance, and customer satisfaction, Khuliso Fittings has earned its reputation as a reliable supplier of stainless steel piping solutions throughout Cape Town and beyond in South Africa.
Yes, custom sizes for Stainless Steel 316/316L Forged Fittings are available at Khuliso Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@khulisofittings.co.za
| ASME b16.9 Fittings Normal Pipe Size | ANSI b16 9 Pipe Fitting O D Y | Wall Thickness T (Pipe Elbow Sch.) | LR 45 Deg Elbows Centre to Face B | SR 45 Deg Elbows Weight | LR 90 Deg Elbows Centre to Face A | LR 90 Deg Elbows Weight In Below | SR 90 Deg Elbows Centre to Face A | SR 90 Deg Elbows Weight In Below | ||
| mm | inch | mm | mm | Schedule | mm | kg | mm | kg | mm | kg |
| 15 | 1/2” | 21.3 | 2.78 | STD | 15.9 | 0.04 | 38.1 | 0.08 | – | – |
| 3.73 | X.S | 15.9 | 0.05 | 38.1 | 0.10 | – | – | |||
| 20 | 3/4” | 26.7 | 2.87 | STD | 11.1 | 0.04 | 28.6 | 0.08 | – | – |
| 3.91 | X.S | 11.1 | 0.05 | 28.6 | 0.11 | – | – | |||
| 25 | 1” | 33.4 | 3.38 | STD | 22.2 | 0.09 | 38.1 | 0.15 | 25.4 | 0.11 |
| 4.55 | X.S | 22.2 | 0.11 | 38.1 | 0.19 | 25.4 | 0.14 | |||
| 32 | 11/4” | 42.2 | 3.56 | STD | 25.4 | 0.14 | 47.6 | 0.28 | 31.75 | 0.18 |
| 4.85 | X.S | 25.4 | 0.2 | 47.6 | 0.39 | 31.75 | 0.24 | |||
| 40 | 11/2” | 48.3 | 3.68 | STD | 28.6 | 0.2 | 57.1 | 0.4 | 38.1 | 0.26 |
| 5.08 | X.S | 28.6 | 0.25 | 57.1 | 0.5 | 38.1 | 0.35 | |||
| 50 | 2” | 60.3 | 3.91 | STD | 34.9 | 0.36 | 76.2 | 0.72 | 50.8 | 0.5 |
| 5.54 | X.S | 34.9 | 0.5 | 76.2 | 1.0 | 50.8 | 0.68 | |||
| 65 | 21/2” | 73.0 | 5.16 | STD | 44.4 | 0.73 | 95.2 | 1.46 | 63.5 | 0.95 |
| 7.01 | X.S | 44.4 | 0.91 | 95.2 | 1.82 | 63.5 | 1.27 | |||
| 80 | 3” | 88.9 | 5.49 | STD | 50.8 | 1.1 | 114.3 | 2.18 | 76.2 | 1.45 |
| 7.62 | X.S | 50.8 | 1.45 | 114.3 | 2.86 | 76.2 | 1.95 | |||
| 100 | 4” | 114.3 | 6.02 | STD | 63.5 | 2.1 | 152.4 | 4.2 | 101.6 | 2.8 |
| 8.56 | X.S | 63.5 | 2.9 | 152.4 | 5.7 | 101.6 | 3.9 | |||
| 125 | 5” | 141.3 | 6.65 | STD | 79.4 | 3.4 | 190.0 | 6.8 | 127.0 | 4.8 |
| 9.5 | X.S | 79.4 | 5.0 | 190.0 | 10.0 | 127.0 | 6.5 | |||
| 150 | 6” | 168.3 | 7.11 | STD | 95.2 | 5.1 | 229.0 | 10.1 | 152.4 | 6.8 |
| 10.97 | X.S | 95.2 | 7.7 | 229.0 | 15.3 | 152.4 | 10.2 | |||
| 200 | 8” | 219.1 | 8.18 | STD | 127.0 | 10.2 | 305.0 | 20.4 | 203.0 | 13.6 |
| 12.7 | X.S | 127.0 | 15.5 | 305.0 | 30.9 | 203.0 | 20.9 | |||
| 250 | 10” | 273.9 | 9.27 | STD | 159.0 | 18.1 | 381.0 | 36.1 | 254.0 | 24.1 |
| 12.7 | X.S | 159.0 | 24.4 | 381.0 | 48.8 | 254.0 | 32.5 | |||
| 300 | 12” | 323.9 | 9.52 | STD | 190.0 | 26.6 | 457.0 | 53.1 | 305.0 | 35.4 |
| 12.7 | X.S | 190.0 | 35.0 | 457.0 | 70.0 | 305.0 | 46.7 | |||
| 350 | 14” | 355.6 | 9.52 | STD | 222.0 | 34.1 | 533.0 | 68.1 | 356.0 | 45.4 |
| 12.7 | X.S | 222.0 | 45.0 | 533.0 | 90.0 | 356.0 | 60.0 | |||
| 400 | 16” | 406.4 | 9.52 | STD | 254.0 | 45.0 | 610.0 | 89.3 | 406.0 | 59.5 |
| 12.7 | X.S | 254.0 | 59.0 | 610.0 | 118.0 | 406.0 | 78.7 | |||
| 450 | 18” | 457.0 | 9.52 | STD | 286.0 | 56.5 | 686.0 | 113.0 | 457.0 | 75.6 |
| 12.7 | X.S | 286.0 | 75.0 | 686.0 | 150.0 | 457.0 | 100.0 | |||
| 500 | 20” | 508.0 | 9.52 | STD | 318.0 | 85.0 | 762.0 | 140.0 | 508.0 | 93.5 |
| 12.7 | X.S | 318.0 | 112.5 | 762.0 | 186.0 | 508.0 | 124.0 | |||
| 600 | 24” | 610.00 | 9.52 | STD | 381.0 | 101.5 | 914.0 | 203.0 | 610.0 | 135.0 |
| 12.7 | X.S | 381.0 | 134.5 | 914.0 | 269.0 | 610.0 | 179.0 | |||
| NPS (inch) | Pipe Schedule. | OD (inch) | Wall Thick. (in) | Temperature | ||||
| 100 Fitting | 200 Fitting | 300 Fitting | 400 Fitting | 500 Fitting | ||||
| Allowable Stress | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 1.315 | 0.133 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 1.315 | 0.179 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 1.315 | 0.250 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 1.900 | 0.145 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 1.900 | 0.200 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 1.900 | 0.281 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 2.375 | 0.154 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 2.375 | 0.218 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 2.375 | 0.344 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 3.500 | 0.216 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 3.500 | 0.300 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 3.500 | 0.438 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 4.500 | 0.237 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 4.500 | 0.337 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 4.500 | 0.531 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 5.563 | 0.258 | 965 | 965 | 965 | 896 | 832 |
| 80 | 5.563 | 0.375 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 5.563 | 0.625 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 6.625 | 0.280 | 877 | 877 | 877 | 814 | 756 |
| 80 | 6.625 | 0.432 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 6.625 | 0.719 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 8.625 | 0.322 | 771 | 771 | 771 | 716 | 665 |
| 80 | 8.625 | 0.500 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 8.625 | 0.906 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 10.750 | 0.365 | 699 | 699 | 699 | 649 | 603 |
| 80 | 10.750 | 0.594 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 10.750 | 1.125 | 2289 | 2289 | 2289 | 2124 | 1974 | |
Stainless steel 316/316L forged fittings are widely used in applications requiring corrosion resistance and high temperatures. Typical applications include the chemical industry, the marine environment, pharmaceuticals, food and beverages, and oil and gas. These fittings are ideal for use in piping systems, pressure vessels and heat exchangers due to their high resistance to pitting, stress corrosion and oxidation including use in wastewater treatment plants, power plants and in offshore rigs. Their strength, stability, and resistance are essential for critical and efficient operation.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
