Khuliso Fittings stands out as a top-notch manufacturer and supplier of Super Duplex Steel UNS S32750 Buttweld Fittings right from the heart of Cape Town, South Africa. Renowned for their remarkable quality and durability, Khuliso Fittings focuses on providing forged and buttweld fittings that are built to endure even the toughest industrial conditions. The Super Duplex Steel UNS S32750 is celebrated for its impressive blend of high strength and exceptional corrosion resistance, especially in environments rich in chlorides and acids. Khuliso Fittings guarantees that every buttweld fitting adheres to rigorous international standards, catering to sectors like oil and gas, petrochemical, marine, and desalination plants across South Africa.
Specifications ASTM A815 / ASME SA815
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size 1/2″ NB to 24″NB in
Type Seamless / Welded / Fabricated
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Super Duplex Steel UNS S32750 Buttweld Fittings are composed primarily of 25% chromium, 7% nickel, 3.6% molybdenum, and small amounts of nitrogen, tungsten, and copper. This unique composition offers excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, making it ideal for harsh environments. The mechanical properties of UNS S32750 include a tensile strength of approximately 80-85 ksi (550-585 MPa), a yield strength of 50-55 ksi (345-380 MPa), and high toughness, even at low temperatures, ensuring reliability and durability in various industrial applications.
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | N | Fe |
| Super Duplex S32750 | 0.030 max. | 2.00 max. | 1.00 max. | 0.030 max. | 0.020 max. | 22.0 – 23.0 | 4.50 – 6.50 | 3.0 – 3.5 | 0.14 – 0.20 | 63.72 min. |
| Super Duplex S32760 | 0.030 max. | 2.00 max. | 1.00 max. | 0.030 max. | 0.020 max. | 21.0 – 23.0 | 4.50 – 6.50 | 2.50 – 3.50 | 0.08 – 0.20 | 63.54 min |
| UNS No | Grade | Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32750 | 7.8 | 0.281 | 1350 | 2460 | ||
| S32750 | 2507 | 550 | 795 | 15 | 310 | 32* |
The Super Duplex Steel UNS S32750 Buttweld Fittings from Khuliso Fittings are crafted with about 25-26% chromium, 6-8% nickel, 3-5% molybdenum, along with trace elements of nitrogen and copper. This unique chemical makeup provides outstanding resistance to pitting, crevice corrosion, and stress corrosion cracking, all while maintaining high mechanical strength, with tensile strengths ranging from 700 to 850 MPa. The dual-phase microstructure, which includes both austenite and ferrite, boosts toughness and fatigue resistance, making these fittings perfect for high-pressure and high-temperature scenarios.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | UNS | WERKSTOFF NR. |
| Super Duplex 2507 | S32750 / S32760 | 1.4410 |
Choose Super Duplex Steel UNS S32750 Buttweld Fittings from Khuliso Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.

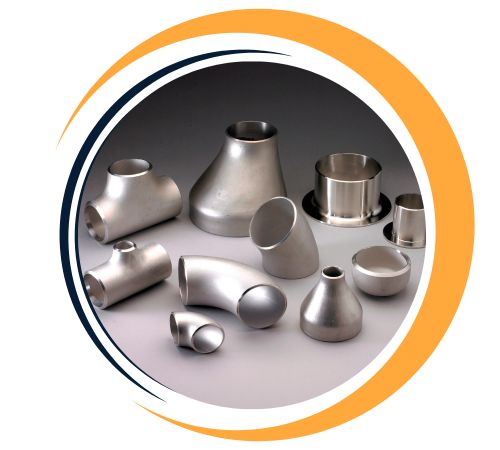

These buttweld fittings find their place in critical applications such as offshore oil and gas platforms, chemical processing facilities, desalination systems, and power generation plants. Their remarkable ability to resist corrosion in harsh chloride environments makes them especially valuable for marine and coastal projects. Khuliso Fittings offers an extensive selection of Super Duplex Steel UNS S32750 Buttweld Fittings, including elbows, tees, reducers, and caps, all designed to ensure reliable, leak-proof connections and a long service life. The company is dedicated to delivering top-quality products that meet the needs of their clients.
Yes, custom sizes for Super Duplex Steel UNS S32750 Buttweld Fittings are available at Khuliso Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@khulisofittings.co.za
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Super Duplex Steel UNS S32750 Buttweld Fittings are widely used in industries requiring high strength and corrosion resistance. They are ideal for chemical processing, petrochemical, and oil & gas sectors, particularly in offshore platforms, pipelines, and heat exchangers. Their resistance to pitting and crevice corrosion makes them suitable for marine environments, desalination plants, and seawater systems. These fittings are also employed in high-pressure systems, desalination units, and in applications requiring exceptional mechanical properties and resistance to stress corrosion cracking.
